OWL Check on Timeseries Event Sequence

I see one use-case where the customer is looking owl to detect for an event ID if Message (A, B, C) come in this pattern A --> B-- > C (80% of the time) at different times in a day and one day if it comes to B–>A–>C the owl should detect this?
is this possible? Event ID will be the same

Just to add A, B and C are in a single column

bineeshbabu

Posted 5 years ago · Edited 1 year ago·Last reply 5 years ago

8 comments

bineeshbabu

OP5 years ago · Edited

Thanks @kirk.haslbeck.collibra.com

This was really helpful

kirkhaslbeck

·5 years ago · Edited

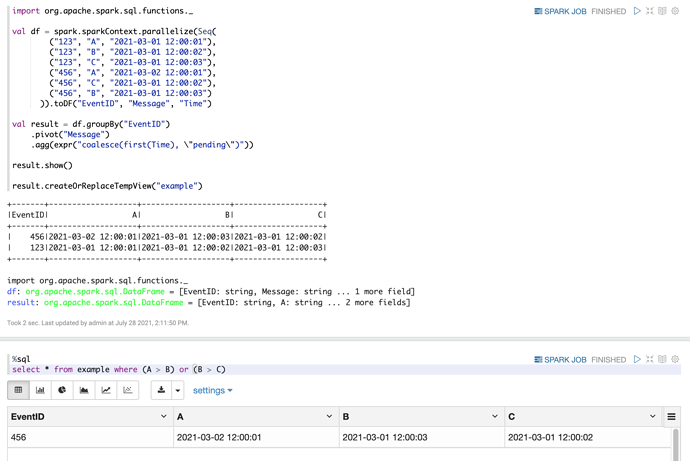

If you use the DataFrame API you can write whatever spark code you like. If you want to use the Rule Builder you could write SQL like the above.

bineeshbabu

OP5 years ago · Edited

Thanks @kirk.haslbeck.collibra.com
Can we write such spark functions in owl rule tab or idea is to create a View and then write a SQL

kirkhaslbeck

·5 years ago · Edited

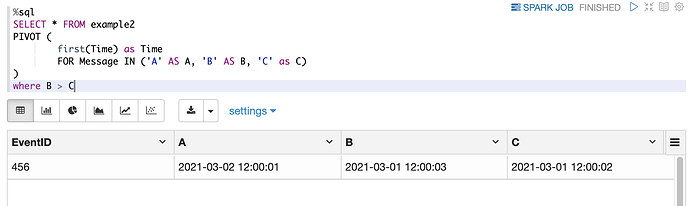

In the ML world this would be similar to a Markov Chain where you predict the sequence of events. While Collibra DQ does support time series outliers it does not support time series event sequences, at least not as an out of the box 1 click feature. One thing to consider for this unique case is to write a DQ rule that transposes by eventID and pivots on Message, similar to a GROUP by on eventId and then write a simple sql conditional check like below.

bineeshbabu

OP5 years ago · Edited

Thanks @kirk.haslbeck.collibra.com, Message A,B,C are not in single cell. They are in different row . something like below

kirkhaslbeck

·5 years ago · Edited

If A,B,C are in a single column and the column looks like this

event_id
a,b,c
a,b,c
d,e,f
a,b,c
b,c,a -> alert

then all you have to do is click OUTLIER -> Categorical and select event_id. The b,c,a would be a rare categorical, low frequency outlier.

bineeshbabu

OP5 years ago · Edited

This via some ETL process into a Database

BigDataBear

·5 years ago · Edited

Hi Bineesh, is this a Kafka Streaming question, or how are the “messages” coming through to DQ?
